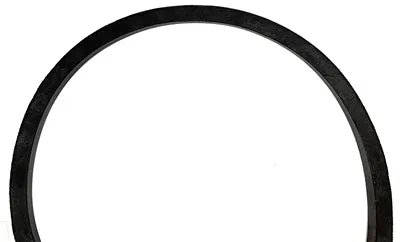

Our 8V3300 v-belt is a high-power premium 330" long belt made to ARPM IP-22 Standards. 8V3300 belts are classified as deep-wedge belts capable of transferring higher loads with a more compact dimensional footprint when compared to other types of belts. 8V series v-belts have a top width of 1.00" and a height of 0.88" with a 38-degree wedge angle and excellent oil resistance. This belt is manufactured with high-strength polyester chords, a high-quality compound material, and a durable polyester/ cotton blend cover; this belt sets the bar for v-belts. Typical applications for 8V3300 v-belts include; plant machinery, agricultural equipment, machine shop equipment, HVAC equipment, fans, and more! Our high-quality 8V3300 belt is engineered to perform and operate for an extended time. Since it is manufactured per ARPM standards and standard dimensions, the belt directly interchanges with other brands. Contact our customer support team for additional information or to get a quote on 8V3300 v-belts, and we will be happy to assist you!

8V3300 V-Belt Dimensions

• Belt Size: 8V3300
• Outside Length: 330"
• Weight: 11.6 LBS
• Operating Temperature Range: -22F to 176F
• Belt Compound: Natural Rubber/ SBR
• Cord Material: Polyester
• Cover Material: Cotton/ Polyester Blend
• Engineering Standard: ARPM IP-22
