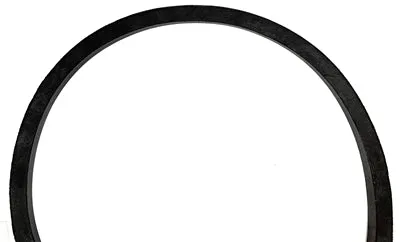

Our 3V425 v-belt is a high-power premium 42.5" long belt made to ARPM IP-22 Standards. 3V425 belts are classified as deep-wedge belts capable of transferring higher loads with a more compact dimensional footprint when compared to other types of belts. 3V series v-belts have a top width of 0.38" and a height of 0.31" with a 38-degree wedge angle and excellent oil resistance. This belt is manufactured with high-strength polyester chords, a high-quality compound material, and a durable polyester/ cotton blend cover; this belt sets the bar for v-belts. Typical applications for 3V425 v-belts include; plant machinery, agricultural equipment, machine shop equipment, HVAC equipment, fans, and more! Our high-quality 3V425 belt is engineered to perform and operate for an extended time. Since it is manufactured per ARPM standards and standard dimensions, the belt directly interchanges with other brands. Contact our customer support team for additional information or to get a quote on 3V425 v-belts, and we will be happy to assist you!

3V425 V-Belt Dimensions

• Belt Size: 3V425
• Outside Length: 42.5"
• Weight: 0.20 LBS
• Operating Temperature Range: -22F to 176F
• Belt Compound: Natural Rubber/ SBR
• Cord Material: Polyester
• Cover Material: Cotton/ Polyester Blend
• Engineering Standard: ARPM IP-22
